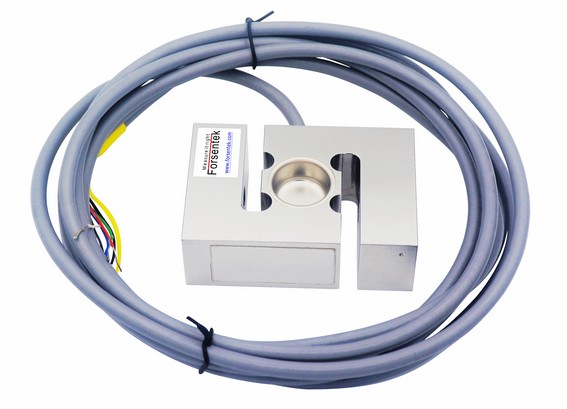

IP68 sealed S-beam tension compression load cell
Model: FSRE
Capacity: 50kg~5000kg
Material: Stainless steel
Load direction: Tension/compression
Rated output: 2.0 mV/V
Non-repeatability: 0.02% of R.O.
Excitation: 3~15V
Service: Tailor-made
Features：
The FSRE stainless steel force sensor is designed for precise bidirectional force measurement in demanding industrial environments. Covering capacities from 50 kg to 5 t, it combines proven strain gauge technology with temperature compensation to maintain stable output under changing operating conditions. Its robust construction provides dependable performance for continuous use where environmental protection is essential. As a hermetically sealed load cell, the FSRE offers strong resistance to moisture, dust, and other external contaminants, making it particularly suitable for outdoor applications and exposed installations.
Featuring an S-shaped body with threaded connections at both ends, the sensor integrates easily with eye bolts, hooks, threaded rods, and other mounting hardware for pulling or pushing force measurement. The hermetic S-beam load cell is well suited to weighing equipment, material testing, industrial automation, force monitoring, and outdoor hopper weighing systems. With its sealed stainless steel construction, the IP68 waterproof S type load cell provides reliable protection and long-term durability in harsh, wet, or dust-prone environments.
