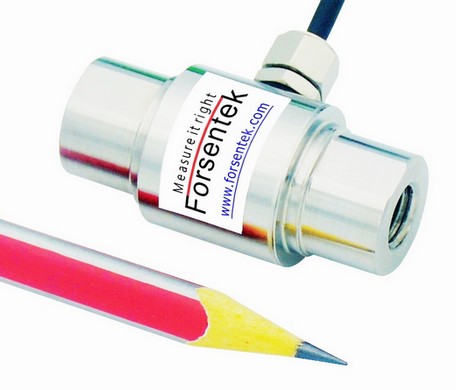

M4 M5 M6 M8 M10 Internal threaded force sensor

Model:                        FLRA

Mounting:                   M4/M5/M6/M8/M10

Type:                          Rod end load cell

Load direction:           Tension/compression

Rated output:              1.5mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~12V

Capacity:                    0.1/0.2/0.5/1/2/5/10kN

Features:

The FLRA female threaded load cell is a compact and durable force transducer designed with internal threaded holes on both ends, making it easy to embed into machinery, fixtures, or test systems without extensive modifications. Constructed from high-quality stainless steel, the FLRA force detection sensor is ideal for tension and compression force measurement and is available in seven rated capacities: 100N, 200N, 500N, 1kN, 2kN, 5kN, and 10kN, allowing users to select the best fit for their application. It supports five different mounting options—M4, M5, M6, M8, and M10—providing exceptional flexibility for a wide range of industrial and automation setups. The miniature design of the FLRA makes it well-suited for applications with tight space constraints. Common use cases include robotic joint force sensing, pneumatic actuator force testing, press machine load control, racing pedal force feedback, and cylinder thrust monitoring. Its compact profile and high performance ensure accurate, repeatable force readings under dynamic conditions. In addition, customization services are available, allowing the FLRA force sensing load cell to be tailored to meet specific design and performance requirements, making it a versatile and reliable choice for engineers and system integrators.

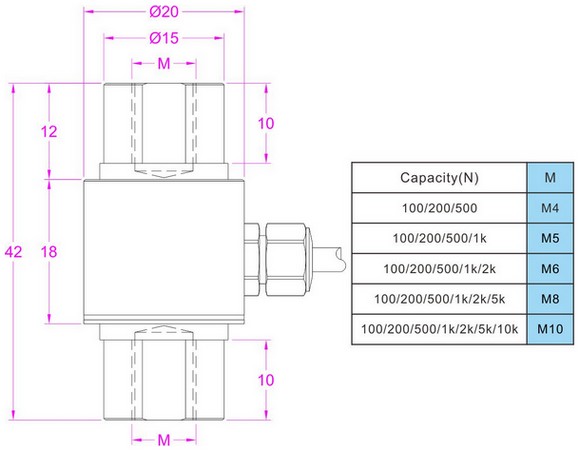

Dimensions:
