IP68 Bending beam load cell 20kg 50kg 100kg 200kg

Model:                        FHZR

Capacity:                    20/50/100/200kg

Material:                     Stainless steel

Type:                          Bellow type load cell

Rated output:              2.0mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Bending beam load cell FHZR is strain gauge based with robust stainless steel enclosure to withstand extreme mechanical stress and aggressive media. Beam type weight sensor FHZR is available in 20kg, 50kg, 100kg and 200kg four rated capacities, it is temperature compensated and IP68 hermetically sealed, which assures stable performance and long-term reliability in harsh conditions. The smooth design without gaps or edges makes it easy to clean, this enables model FHZR to be used in food industry, production of pharmaceuticals, life sciences and other industries where hygiene is a decisive factor.

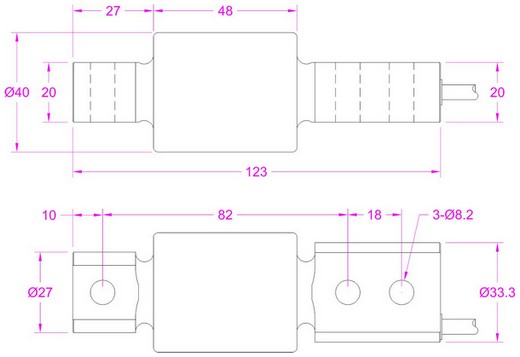

Dimensions:
