Micro load cell 200g miniature weight sensor

Model:                        FMH-200g

Capacity:                    200g

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              0.75 mV/V

Non-repeatability:      0.03% of R.O.

Excitation:                  3~8V

Other:                         Custom-design service

Features：

Micro load cell FMH-200g is strain gauge based, high accuracy with 0.03% non-linearity of rated capacity. Single point load cell FMH-200g is temperature compensated which assures high stability in a wide temp. range. You may find low capacity loadcell FMH-200g suitable for electronic balance, yarn tension measurement and other industrial weighing applications.

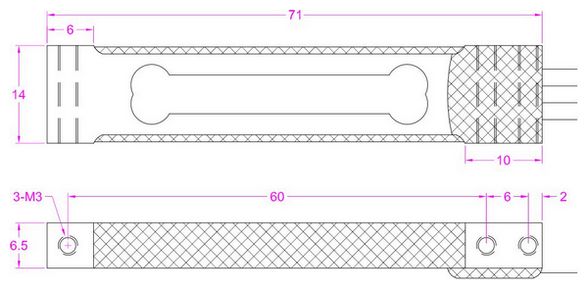

Dimensions：
Searching keywords：
Micro load sensor 200g
