Rotary torque transducer 0-5V 0-10V 4-20mA

Model:                        FYTK

Capacity:                    0~5NM

Material:                     Stainless steel

Load direction:           Clockwise&CCW

Rated output:              ±5V/±10V/4-20mA

Non-repeatability:      0.2% of R.O.

Excitation:                  24V/12V DC

Other:                         Custom-design service

Features:

Miniature shaft type brushless rotary torque sensor FYTK is produced based on contactless transformer technology which makes it more durable than slip-ring type torque transducers. Model FYTK offers 0~0.1Nm / 0~0.2N*m / 0~0.5N-m / 0~1N*m / 0~2Nm / 0~3N-m / 0~5Nm seven measuring ranges with integrated rotating speed measurement up to 8000RPM. Torque meter FYTK is able to measure rotating torque in both clockwise and anticlockwise direction with ±5V / ±10V / 4-20mA output utilizing built-in signal conditioning circuit.You may find torque cell FYTK suitable for applications such as servo motor torque testing, agitator torque control, screw locking torque monitoring, torque measurement of engines, pumps, gearboxes,and so on.

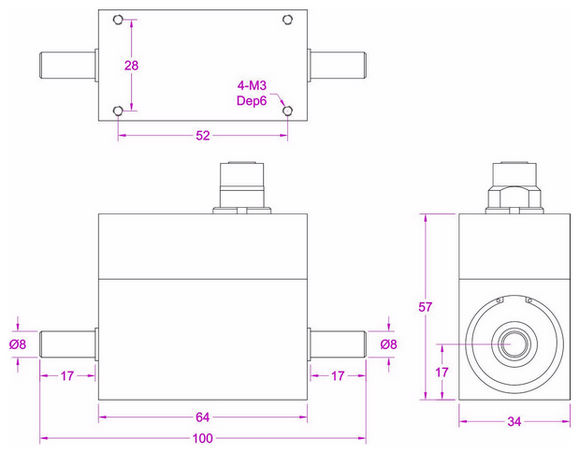

Dimensions:
Searching keywords:
Contactless rotary torque sensor,shaft torque sensor,rotating torque measurement
