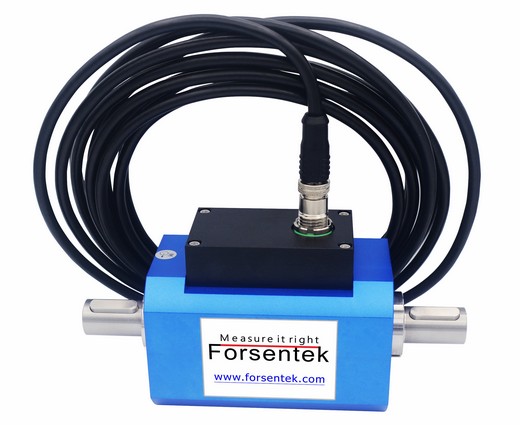

Contactless rotary torque sensor 0-10V 4-20mA

Model:                        FYTG

Capacity:                    0~2000NM

Material:                     Stainless steel

Load direction:           Clockwise&CCW

Rated output:              ±5V/±10V/4-20mA

Non-repeatability:      0.2% of R.O.

Excitation:                  24V/12V DC

Other:                         Custom-design service



Features:

Contactless rotary torque meter FYTG is intended for both torque and speed measurement,there is no friction between rotating shaft and signal collect device thanks to non-contact rotary transformer technology,which makes it much more durable than slip-ring type torque transducer. Dynamic torque sensor FYTG offers 0-1NM / 0-2NM / 0-3NM / 0-5NM / 0-10NM / 0-20NM / 0-30NM / 0-50NM / 0-100NM / 0-200NM / 0-300NM / 0-500NM / 0-1000NM / 0-1500NM / 0-2000NM fifteen torque measuring ranges to choose from, both torque and speed channel delivers 0-5V , 0-10V or 4-20mA output. Torque cell FYTG can be mounted in horizontal, vertical and other directions, keyed shafts on both sides of the sensor can be used to connect with motor and load through couplings, the sensor shaft rotates while the housing remains still during measurement. You may find torque meter FYTG applicable for torque measurement of servo motors, impellers, pumps, agitators, engines and so on.

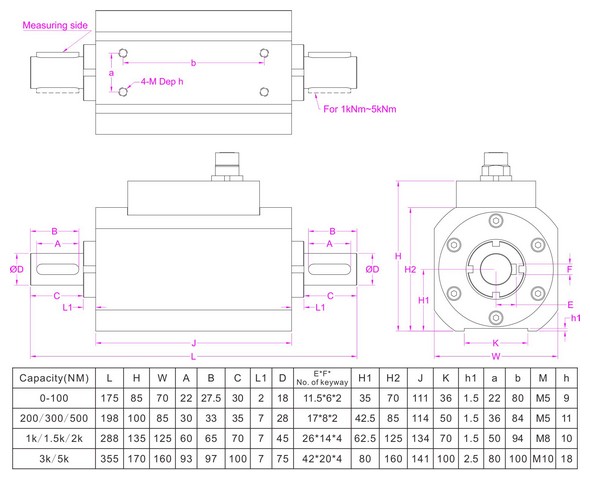

Dimensions:
