In line force sensor M36 Rod end load cell

Model:                        FLRB

Capacity:                    20kN~200kN

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~12V

Connection:                 M36*2 threaded rod

Features:

Threaded in line load cell FLRB utilizes strain gauge technology intended for tension and compression force measurement. Rod end force sensor FLRB is made of stainless steel with M36 male threads on both sides for mechanical connection. Force transducer FLRB offers 20kN / 30kN / 50kN / 100kN / 150kN / 200kN six rated capacities to choose from. Model FLRB can also be modified or customized to meet requirements of different applications.

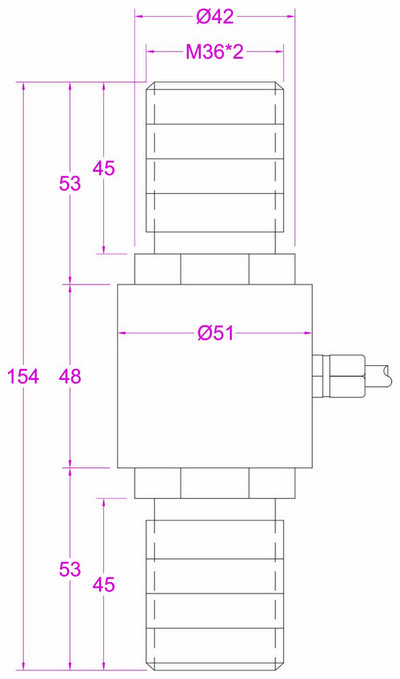

Dimensions:
