Weighing module for warehouse weight monitoring

Model:                        FWHD

Capacity:                    2kg~500kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0 mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Features：

Weight measurement module FWHD offers 2kg / 5kg / 10kg / 20kg / 40kg / 60kg / 100kg / 200kg / 350kg / 500kg measuring ranges with maximum 0.02% non-linearity of the full scale to choose from.This load sensing unit is temperature compensated to deliver stable readout in long term measurement with very low creep,you may find weighing assembly FWHD applicable for warehouse weighing systems, freight pallet weight monitoring, beehive scales, packing line, etc..

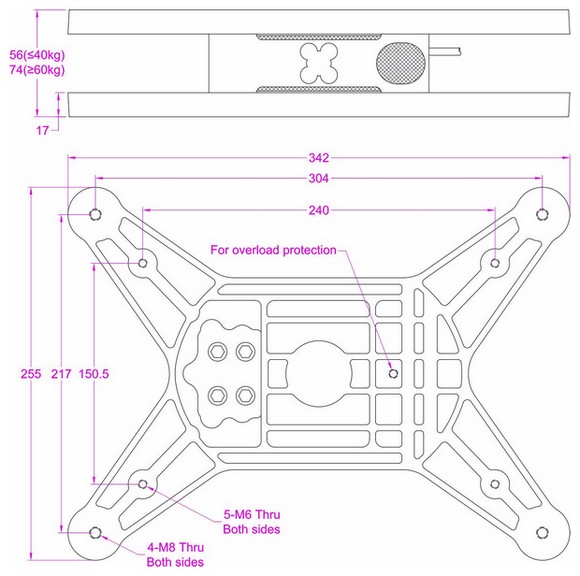

Dimensions：
Searching keywords：
Warehouse weighing module,pallet weight measurement
