Custom load pin load cell 30t 20t 10t

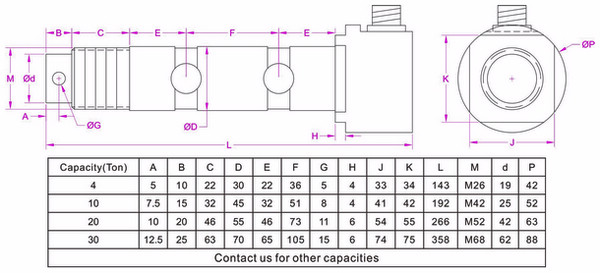

Model:                        LPG

Capacity:                    4t/10t/20t/30t

Material:                     17-4PH

Load direction:           Tension/compression

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Load pin load cell LPG is made of stainless steel based on strain gauge technology,model LPG is available in 4t / 10t / 20t / 30t capacities with unamplified mV/V output from the wheatstone bridge.Pin type force sensors are widely used for overload protection in hoisting equipment,mooring devices, winches, coupling devices, construction machinery, etc.They are interchangeable with shaft pins,thus can be easily integrated into existing system and get the measurement done. Tailor-made service is available at Forsentek to meet requirements of different applications.
