Low profile single ended shear beam load cell

Model:                        FHSD

Capacity:                    200kg/0.5t/1t/2t

Feature:                     Low profile

Structure:                   Single ended shear beam

Rated output:              2.0mV/V

Non-repeatability:      0.017% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Features:

Single ended shear beam load cell FHSD offers alloy steel and stainless steel two options with 200kg / 500kg / 1000kg / 2000kg four rated capacities to choose from, IP67 environmentally sealed through humidity-resistant protective coating which assures long-term stability and durability over the entire compensated temperature range in most application scenarios. High accuracy, easy to install, low profile shear beam load sensor FHSD offers a high quality weighing solution for platform weighing machines, pallet scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales and so on.

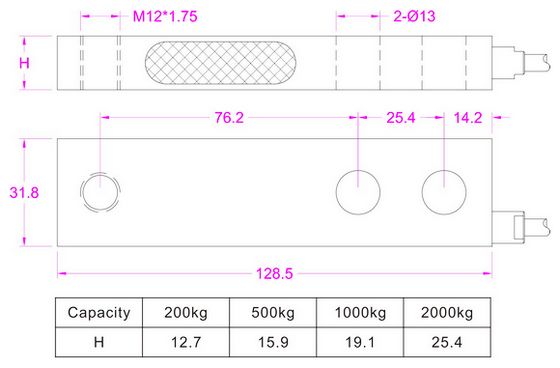

Dimensions:
