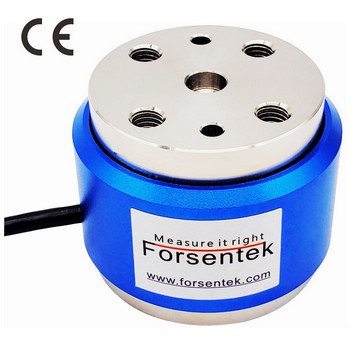

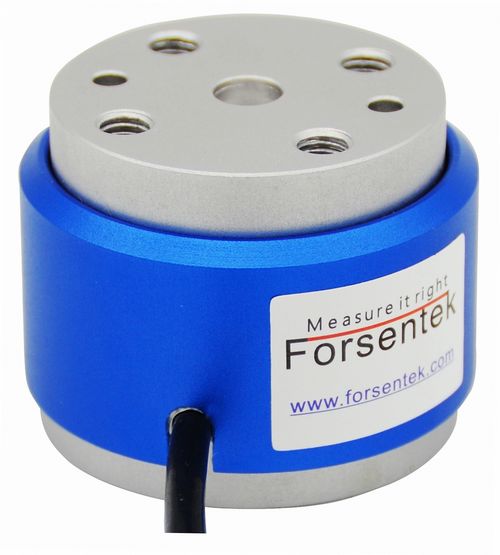

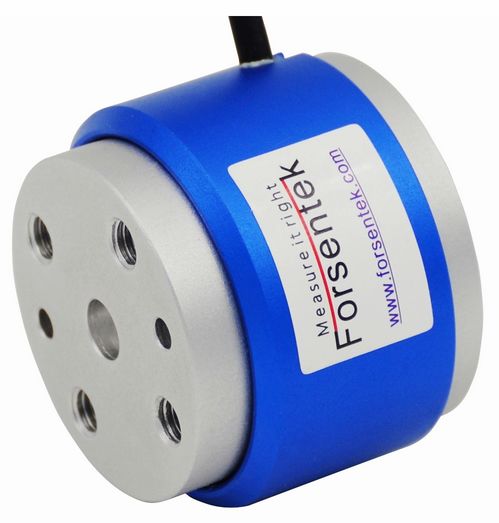

Miniature torque sensor 0-100Nm torque measurement

Model:                 FTE

Capacity:              0.1NM~100NM

Material:               Al/S.S

Load direction:     Clockwise&CCW

Rated output:        1.0mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~15V

Other:                   Customizable



Features:

The FTE miniature torque sensor is a compact, strain gauge-based non-rotating torque transducer designed to measure both clockwise and counterclockwise torque with high precision. It is available in a wide range of capacities, from 0.1Nm to 100Nm, and offers a maximum non-linearity of just 0.2%, ensuring accurate and reliable measurements. Featuring end flanges on both sides, the FTE can be easily bolted between shafts or mounting plates, making installation straightforward even in space-constrained setups. Its small footprint makes it ideal for applications where mounting space is limited. Common uses include motor torque measurement, test bench integration, screwdriver calibration, and twist force analysis. In addition to the standard models, the FTE torque sensor can be modified or fully customized to meet specific customer requirements, making it a versatile solution for various industrial and laboratory torque measurement needs.

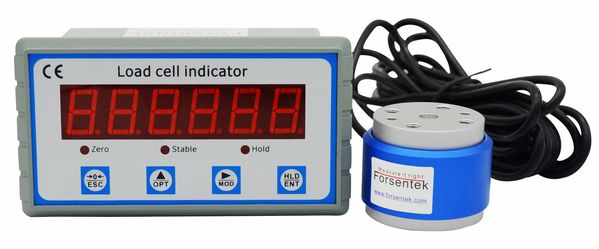

torque measurement instrument

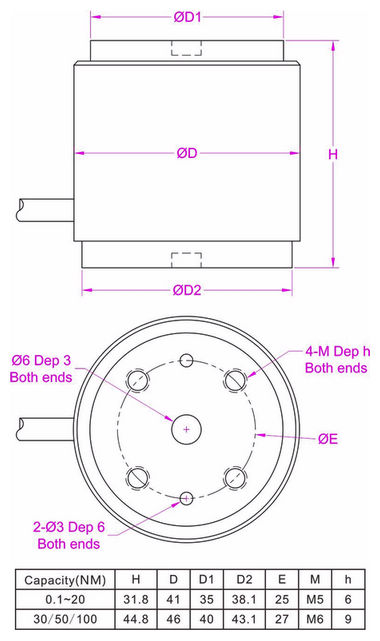

Dimensions:
