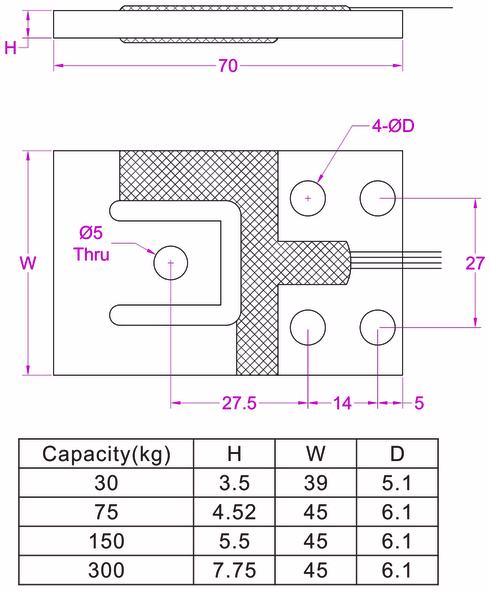

Low profile load cell Planar beam load cell

Model:                        FHA

Type:                          Planar beam load cell

Feature:                      Compact weight sensor

Load direction:           Compression

Rated output:              1.5/2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~10V DC

Capacity:                    30/75/150/300kg


Low profile planar beam load cell FHA is made of aluminum based on strain gauge technology. Planar load cell FHA offers 0-30kg / 0-75kg / 0-150kg / 0-300kg four measuring ranges to choose from, high accuracy with 0.05% non-linearity of the full scale, compact design enables the construction of scales with an extremely low overall height, 1000 ohms bridge resistance makes it suitable for battery powered weighing devices.
