Subminiature load button load cell 5kg 10kg 20kg

Model:                        FC10C

Capacity:                    5kg~50kg

Material:                     Stainless steel

Load direction:           Compression

Rated output:              1.0mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~10V

Other:                         Custom-design service

Features:

Subminiature load button load cells are featured with miniature size,these miniature load cells can be used in a wide range of industrial applications,especially popular for force measure where space is at a premium.

Micro load cell FC10C is a upgrated version from FC10,low heat emmision due to its higher resistance(>700ohms) makes it more durable compared to normal 350ohms version on the market.

A standard micro load cell outputs mV signal from the wheatstone bridge,the output range is normally between 0mV and 20mV which is proportional to the applied force.

load cell wiring diagram

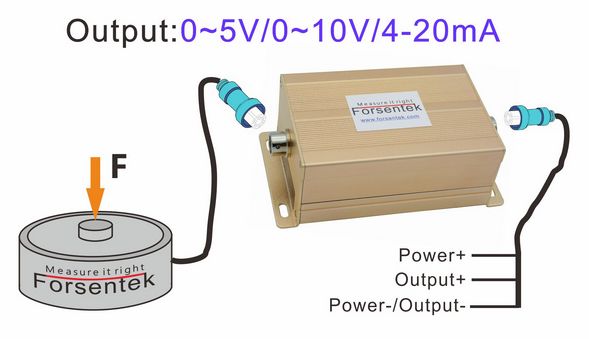

For easy data processing,load cell signal conditioner can be used to acquire 0-5V/0-10V/4-20mA output which is compatible with most data acquisition system in the market.

load cell 4-20mA

Connecting with load cell indicator FPT,the value of measured force can be displayed,FPT is also equipped with RS485 or RS232 commnucation interface,amplified signal 0-5V/0-10V/0-20mA/4-20mA can also be achieved from the indicator.

force sensor with indicator

Forsentek subminiature load cells have been widely used in applications such as:

Clamping force measurement    Force overload protection    Load distribution measurement    Press die force measurement    Assembly line    Auto equipment    Medical devices

With continuous improvement,the smallest load cell with 8mm outer diameter is now available,contact our sales for further info if you are interested.

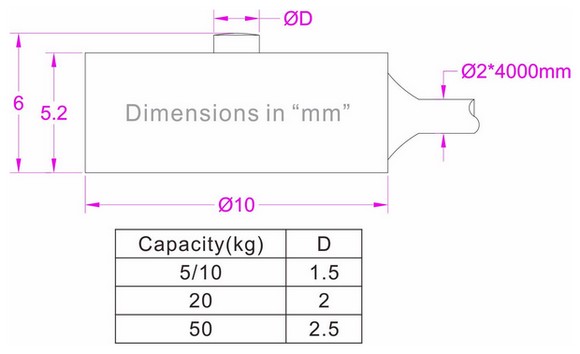

Dimensions:
