Triaxial load cell 0-1000kg Tri-axial force sensor

Model:                        F3A/F3B

Capacity:                    50kg~1000kg

Type:                          Multi-axis load cell

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.2% of F.S.

Excitation:                  3~15V

Usage:                       3 axis force measurement

Features:

The F3A/F3B tri-axial load cell is constructed from stainless steel and utilizes metal foil strain gauge technology, providing mV/V output independently for all three axes via separate Wheatstone full bridges. It supports both tension and compression force measurement on each axis and is available in six rated capacities: 50kg, 100kg, 200kg, 300kg, 500kg, and 1000kg (500N to 10kN). Designed for durability and efficiency, this compact sensor features a rugged structure with flange-to-flange mounting, making it easy to integrate into various mechanical systems. The F3A/F3B multi-axis load cell is ideal for a wide range of applications, including actuator force monitoring, grinding force measurement, industrial testing, and force simulation. Its robust design and high accuracy make it a reliable solution for multi-axis force sensing in demanding industrial environments.

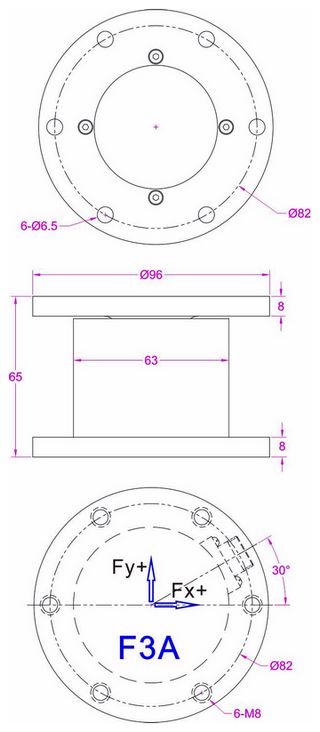

Dimensions:
