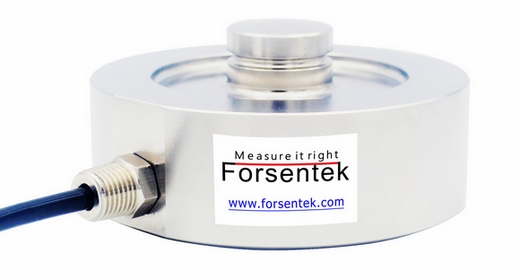

The FCSE disc load cell is a compact, high-performance compression force cell developed for precise and reliable compression measurement in demanding industrial and laboratory environments. Manufactured from premium stainless steel, this hermetic button load cell is fully sealed to IP68 standards, providing outstanding protection against moisture, dust, oil, and harsh field conditions. Its robust construction ensures long-term stability and dependable performance in both indoor installations and outdoor applications.

As a versatile IP68 compression sensor, the FCSE round force sensor is available in ten rated capacities: 5kN, 10kN, 25kN, 50kN, 100kN, 150kN, 200kN, 300kN, 500kN, and 1000kN. This wide range allows accurate force measurement across low-capacity test benches as well as heavy-duty compression monitoring systems. The strain-gauge diaphragm design features a convex loading button that helps accommodate minor misalignment, improving accuracy, repeatability, and overall measurement stability. The compact button-type form factor is ideal for applications with limited installation space where precision cannot be compromised. Typical applications include press-fit force monitoring, material testing machines, structural compression testing, and general industrial automation systems.
