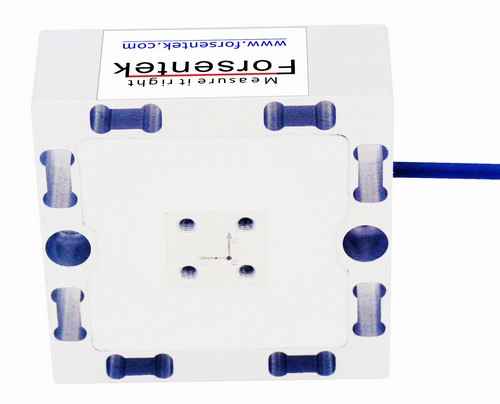

The F3U 3-axis load cell is a compact and high-precision multi-axis force sensor designed for accurate three-dimensional force measurement in both tension and compression along the X, Y, and Z axes. Available in 100N, 200N, 300N, and 500N rated capacities, this 3D load cell combines durability with precision—aluminum construction is used for the 100N and 200N models, while stainless steel is adopted for the 300N and 500N versions to ensure superior strength and stability under higher loads. Each axis of the sensor integrates a full Wheatstone bridge circuit to provide direct, stable mV/V output signals without the need for complex mathematical compensation. When combined with an external amplifier, it can conveniently deliver 0–5V, 0–10V, or 4–20mA analog outputs for versatile system integration. Engineered for robotics, industrial testing, and research applications, the F3U multi-axis load cell offers excellent repeatability and low cross-talk performance. Forsentek also provides fully customized triaxial load cell designs to meet specific requirements for precision force sensing in complex, multi-directional measurement environments.
