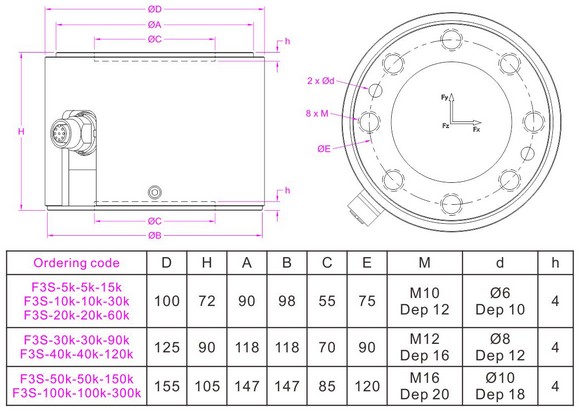

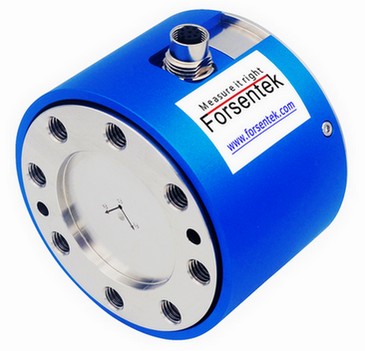

The F3S 3-axis force sensor is a precision-engineered multi-axis load cell based on strain gauge technology, capable of simultaneously measuring forces along the X, Y, and Z axes. Its rugged flange-to-flange configuration provides secure installation and exceptional structural rigidity, making it ideal for complex industrial and research applications requiring stable performance under substantial loads. Available in a wide range of sizes and rated capacities, the F3S triaxial load cell is engineered to handle diverse test scenarios, with X and Y axis ranges spanning from 5kN to 100kN and the Z axis supporting significantly higher loads from 15kN to 300kN. This enhanced Z-axis capacity addresses the needs of applications where vertical forces are predominant. Designed to deliver accurate readings in both static and dynamic conditions, the sensor is widely applied in structural health monitoring, aerospace load analysis, material property evaluation, press-fit verification, biomechanical testing, and endurance validation in high-force systems. Each unit offers minimal non-linearity and crosstalk, ensuring precise and repeatable results over time. Built from robust materials with wide measuring ranges, the F3S 3D force sensor can be tailored with custom mounting features, signal outputs, or load configurations to meet unique application requirements. It is a reliable, adaptable tool for professionals needing multidirectional force measurement with superior performance.
