Overload protection load cell for pulley system

Model:                        FXLP

Capacity:                   200/500/1000kg

Material:                    Stainless steel

Load direction:           Tension

Rated output:              1.5mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~12V

Other:                         Custom-design service



Features：

Load cell FXLP is specially designed for overload protection in hoisting and traction sheave system, it can be modified or customized to adapt to different pulley systems.

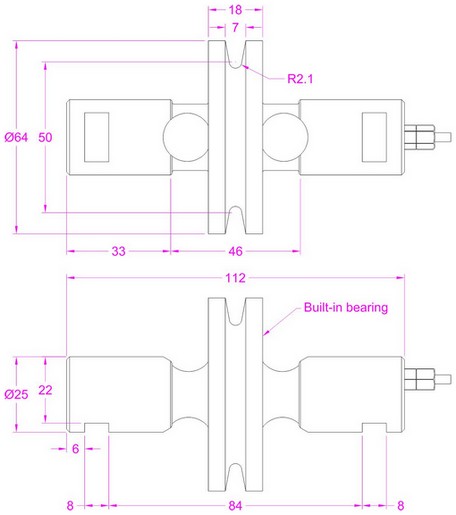

Dimensions：
Searching keywords：
Pulley load cell,pulley tension sensor
