Round bar load cell 0-4.1t Mobile load cell

Model:                        FHXG

Capacity:                    2/3/4.1 ton

Type:                          Mobile weigh bar

Load direction:           Compression

Rated output:              0.96mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V DC

Customizable:             Yes

Features：

Round bar load cell FHXG is made from alloy steel and IP67 hermetically sealed intended for outdoor use, it offers 2000kg, 3000kg and 4100kg three rated capacities for customers to choose from. TMR load cell FHXG is typically used for weight monitoring in agricultural machinery and mounted on the hitch of the mixer feeders or between the chassis and the tank. Mobile load cell FHXG can be modified or customized to better match customer needs.

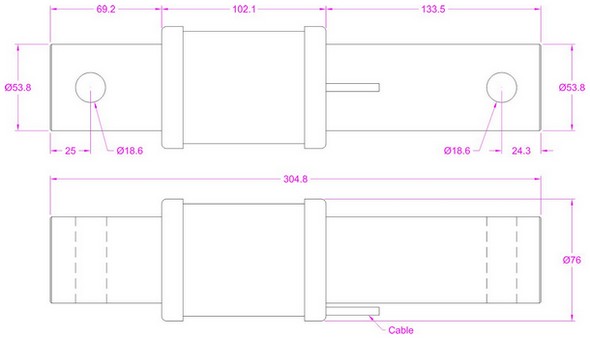

Dimensions：
Searching keywords：
Weigh bar,Agricultural load cell
