Tension compression type load cell 0-50kN

Model:                        FUTC/FUTD

Capacity:                    0.5/1/2/5/10/20/50kN

Type:                          S-beam load cell

Load direction:           Traction/Compression

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Customizable:             Yes

Features：

Tension and compression load cell FUTC/FUTD is made from stainless steel offering 500N / 1kN / 2kN / 5kN / 10kN / 20kN / 50kN seven rated capacities to choose from. The force sensor FUTC/FUTD adopts internal threaded hole design for easy installation and loading, this model can be modified or customized as per request of customers.

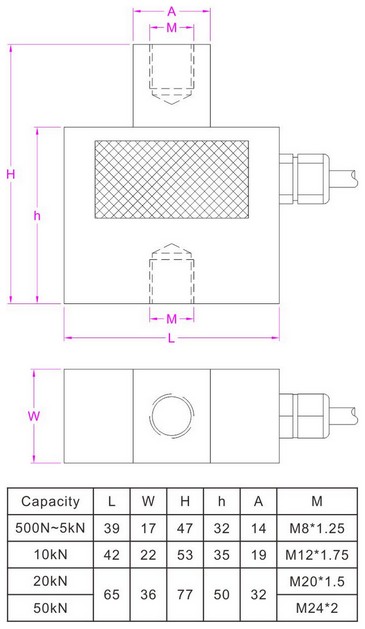

Dimensions：
Searching keywords：
Tension and compression load cell,bidirectional force sensor
