Miniature flat compression load cell 0-20kN

Model:                        FFP

Capacity:                    0-20kN

Type:                         Flange force sensor

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

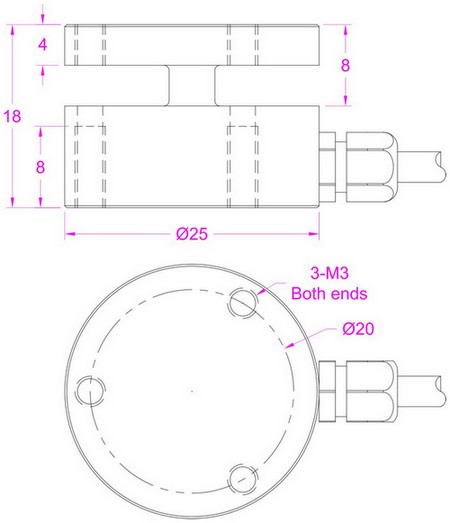

Mounting:                 Flange to flange


Miniature flange type force sensor FFP is made of stainless steel based on strain gauges intended for compression force measurement with 0-200N / 0-500N / 0-1kN / 0-2kN / 0-5kN / 0-10kN / 0-20kN seven ranges to choose from. Flange to flange configuration, compact size, you may find flange mounted force transducer FFP suitable for applications such as automated control, fixture clamping force measurement, load distribution analysis, hand press force verification, and so on. Flange mounted load cell FFP can also be modified or customized as per client‘s request.
