Micro rod end tension compression load cell

Model:                        FL10

Capacity:                    5/10/20/50/100kg

Type:                          Mini rod end load cell

Load direction:           Tension/compression

Rated output:              1.0 mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~10V

Threaded rod:            M6/M3

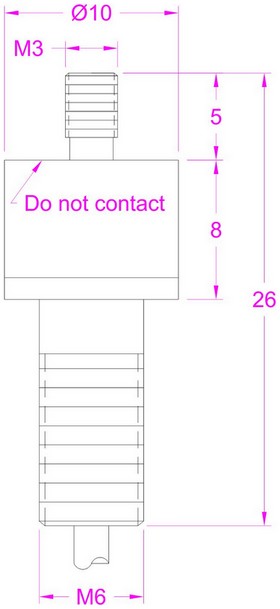

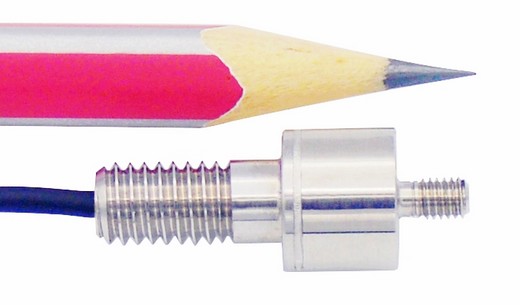

Micro inline load cell FL10 is made from stainless steel offering 5kg / 10kg / 20kg / 50kg / 100kg five rated capacities for tension and compression force measurement. Compact size with only 10mm diameter, the wire is led out from the axial direction which helps save the radial installation space. The unique design with one M3 and one M6 threaded rod on each side of the transducer enables force sensor FL10 to be easily embedded into mechanical shaft to take measurements. Besides the standard dimensions and capacities, miniature rod end load cell FL10 can also be modified or customized according to client’s specific requirements.
