Product > Beam load cell

Stainless steel single point load cell 0-500kg

Model:                        FHPR

Capacity:                    50/100/200/300/500kg

Material:                     Stainless steel

Type:                          Single point load cell

Rated output:              2.0mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Stainless steel single point load cell FHPR offers 50kg / 100kg / 200kg / 300kg / 500kg five rated capacities and is corner error trimmed for platform sizes up to 500x500mm, this makes it suitable for platform weighing scales where off-center load may exist. Weight sensor FHPR is IP68 hermetically sealed to protect the internal strain gauges and circuitry from harsh environments, typical applications include bagging and filling machines, food and pharmaceutical industry, small bucket and hopper weighing systems, and so on. You may find model FHPR interchangeable with Mettler toledo SSH, ANYLOAD 651KS22, VPG Tedea Huntleigh 1510, Hardy HISP7, Minebea intec PR 58, Groupfour CLTD 4030 and Flintec PC7.

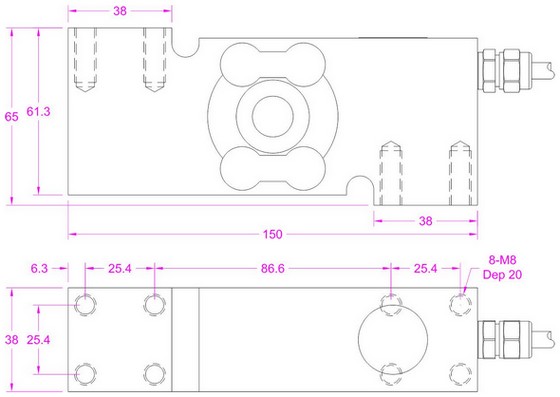

Dimensions:
Searching keywords:
Single point load cell 500kg,waterproof load cell
