M4 tapped miniature tension compression sensor

Model:                        FSXA

Capacity:                    0-1500N

Type:                          S-beam load cell

Load direction:           Traction/Compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~12V

Tapped hole:               M4

Features:

Miniature tension compression sensor FSXA is made from stainless steel with s-shaped structure, it is designed with an M4 tapped hole on each side of the transducer, through which load buttons, eye bolts, hooks and other accessories can by mounted to suit different applications. Jr. s-beam load cell FXSA offers 100N / 200N / 500N / 1kN / 1.5kN five rated capacities for both static and dynamic force measurement. Unlike traditional s type load cells, cable of force sensor FSXA is led out from the axial direction, which helps save radial installation space. Custom made service is available for load cells and force sensors with similar design.

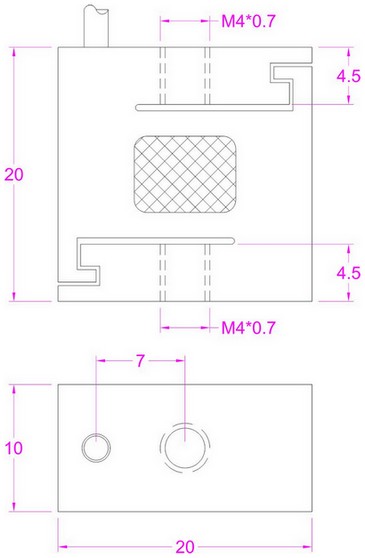

Dimensions:
