M4 threaded rod end load cell tension compression

Model:                        FLXK

Capacity:                    5/10/20/50kg

Type:                          Rod end force sensor

Load direction:           Traction/Compression

Rated output:              1.3mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~12V

Threaded rod:             M4

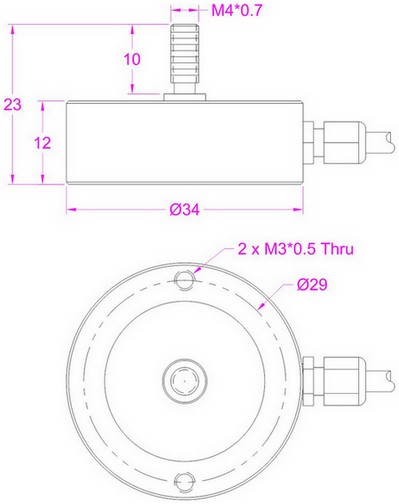

Rod end load cell FLXK is designed with an M4 threaded rod at the top center of the transducer, through which both tensile and compressive force can be loaded and measured. The 2 x M3 tapped holes located at the outer circle of the sensor can be used to fix the loadcell to a flat and solid surface. Bidirectional force sensor FLXK is strain gauge based offering 5kg / 10kg / 20kg / 50kg four rated measuring ranges, it can be modified or customized upon request.
