M16 tapped stainless steel pancake load cell 0-3t

Model:                        FCMU

Capacity:                    0-3000kg

Material:                     Stainless steel

Type:                          Pancake load cell

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

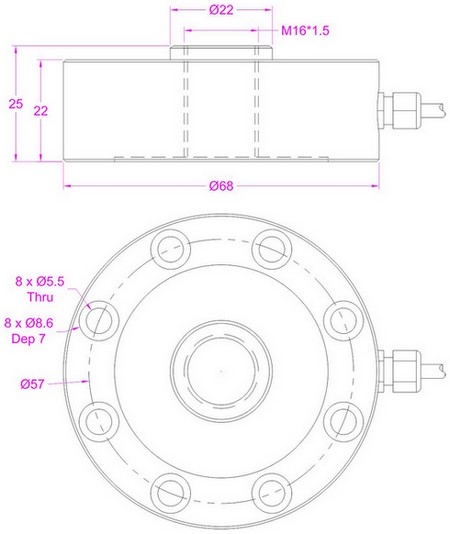

Connection:                 M16*1.5


Low profile pancake load cell FCMU is made from stainless steel with 50kg / 100kg / 200kg / 500kg / 1000kg / 2000kg / 3000kg seven rated capacities intended for both traction and compression force measurement. Universal pancake load cell FCMU incorporates an M16x1.5 tapped hole running through the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to meet different loading requirements. Stainless steel load cell FCMU consists of a full Wheatstone bridge with 2000 ohms high resistance, which delivers better stability while consuming less power compared to traditional loadcells with 350 ohms or 700 ohms resistance. Model FCMU offers a comprehensive force measurement solution for static and dynamic forces, you may find it suitable for force measurement and feedback in extruders, injection molding machines, hydraulic presses, material testing machines, etc.
