0-50kg load cell with flanged mounting surface

Model:                        FXFB

Capacity:                    2/5/10/20/30/50kg

Material:                    Stainless steel

Load direction:           Traction/compression

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

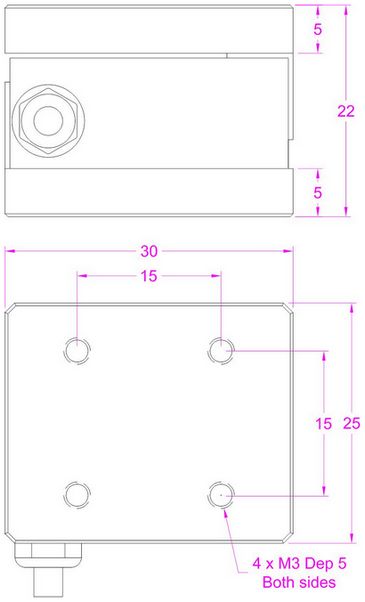

Mounting:                  Flange-to-Flange


Flange type load cell FXFB offers 0-2kg / 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg six rated measuring ranges intended for both tension and compression force measurement. Force sensor FXFB is made from stainless steel with flanged surface on each side of the transducer which enables it to be easily mounted and loaded. The bonded Wheatstone bridge utilizes 1000 ohms high resistance strain gauges to deliver better stability while consuming less power. Model FXFB can be modified or customized upon request.
