Small flange type reaction torque sensor 0-150Nm

Model:                        FT1A

Type:                          Reaction torque sensor

Mounting:                   Flange to flange

Structure:                    Through hole

Rated output:              2.0 mV/V

Non-repeatability:      0.1% of R.O.

Torsion direction:        Clockwise&CCW

Torque range:              0~150Nm

Features：

Miniature reaction torque sensor FT1A utilizes strain gauge technology and features a 14.7mm diameter hole passes through the middle of the transducer. Double flange structure enables it to be easily mounted between shafts, axes or mounting plates where direct drive is required. Though hole torque transducer FT1A is available in 1Nm / 2Nm / 5Nm / 10Nm / 20Nm / 30Nm / 50Nm / 100Nm / 150Nm nine rated capacities intended for torque measurement in both clockwise and anticlockwise direction. Flange type torque sensor FT1A offers an ideal solution for torque measurement applications with limited mounting space and tight budget. Model FT1A can also be modified or customized to meet your requirements.

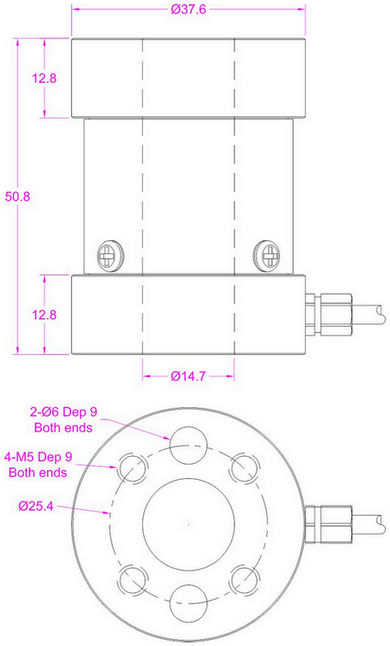

Dimensions：
