Miniature tension compression load cell 0-1kN

Model:                        FCU

Capacity:                    100/200/500/1000N

Material:                     Stainless steel

Type:                         Pancake load cell

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~12V

Connection:                 M4 tapped hole

Features:

Miniature force sensor FCU is made from stainless steel utilizing strain gauge technology, it features a M4 mounting hole located at the top center of the transducer which can be used to mount attachments such as load buttons, eye bolts and other threaded assemblies for force measurement in both tension and compression direction. Miniature pancake load cell FCU offers 0-100N / 0-200N / 0-500N / 0-1000N four different measuring ranges to choose from. Small size force transducer FCU provides a comprehensive force measurement solution for both static and dynamic forces. Loadcell FCU can also be modified or customized.

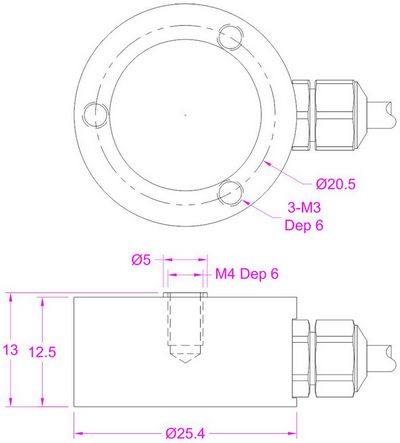

Dimensions:
