Car hand brake operating force transducer

Model:                        FLXG

Capacity:                    1kN

Material:                     Stainless steel

Load direction:           Pull

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Usage:                        Handbrake testing

Features：

Handbrake force sensor FLXG-1kN is specially designed with an integrated clamping tool which can be used to mount the transducer to a parking brake easily and measures the vertical force applied to car handbrake. Model FLXG-1kN can be modified or customized to suit different applications.

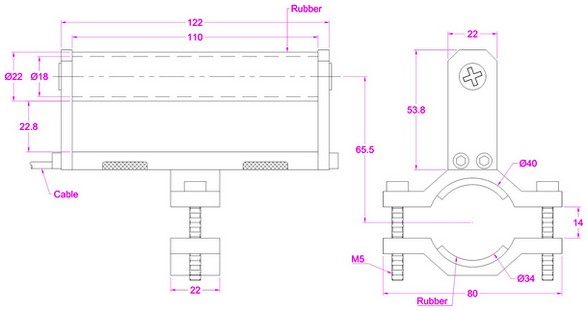

Dimensions：
Searching keywords：
Automative handbrake force sensor
