Product > Compression load cell

Load cell assembly for batch hopper weighing

Model:                        FWM

Capacity:                    0.5t-100t

Type:                          Weighing assembly

Load direction:           Compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Application:                Tank/hopper scales

Features:

Weighing assembly FWM is a popular solution for hopper scales and tank weighing systems, with its compression load cell and integrated mounting accessory, it can be bolted directly to the floor and the legs of vessel. Constructed of high stiffness alloy steel, load cell assembly FWM offers a wide measuring range from 0.5ton up to 100ton, it normally takes 3 or 4 modules to work together, summing boxes and display units are also available at Forsentek to form a complete weighing system.

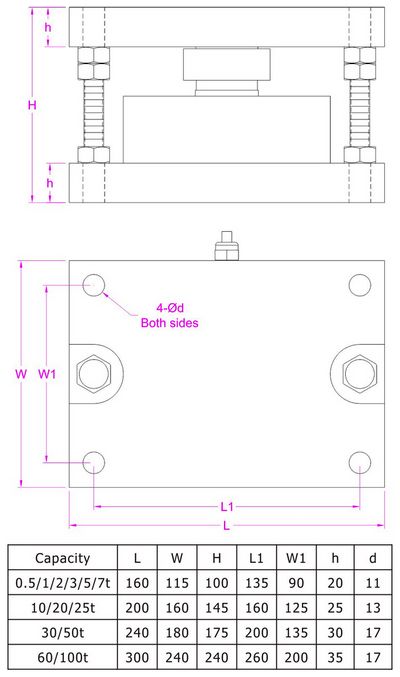

Dimensions:
