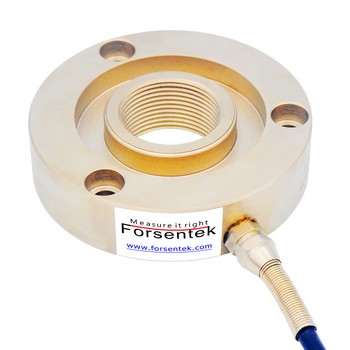

M36 threaded hollow pancake load cell thru-hole

Model:                        FDBK

Capacity:                   5/10/20/30kN

Type:                          Hollow type

Load direction:           Tension/Compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Structure:                    Thru-hole

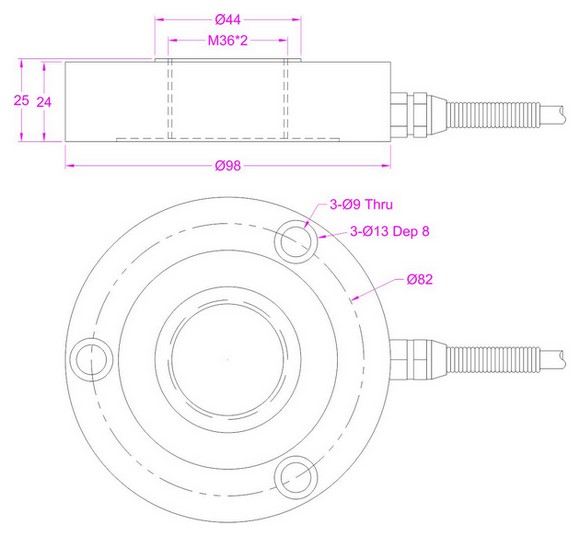

Through hole load cell FDBK features a M36 hole located at the center of the transducer which can be used to pass through the load structure or connect with a threaded rod. Low profile donut force sensor FDBK is made of alloy steel intended for both traction and compression force measurement with 5kN / 10kN / 20kN / 30kN five rated capacities to choose from. Hollow pancake load cell FDBK can also be modified or customized.
