Low profile flat load cell force plate sensor

Model:                        FCFE

Capacity:                    0.5/1/2kN

Material:                     Stainless steel

Type:                          Force plate

Rated output:              1.0mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Load direction:           Compression



Features：

Low profile flat load cell FCFE is made of stainless steel with 500N / 1kN / 2kN three rated capacities intended for compression force measurement. Low height design, large contact surface, plate transducer FCFE can be easily mounted under load structure without taking up too much space. Force plate sensor FCFE can be modified or customized upon request.

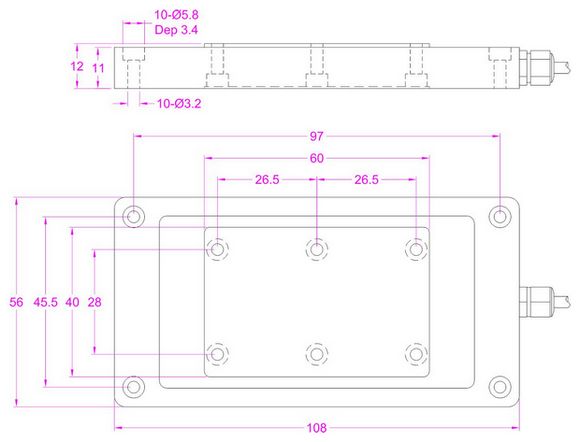

Dimensions：
Searching keywords：
Low profile force transducer
