Mini load cell tension compression sensor 0-20kg

Model:                        FLAD

Mounting:                   M3/M2 threaded hole

Type:                          Analog load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~12V

Capacity:                   1/2/5/10/20kg

Features:

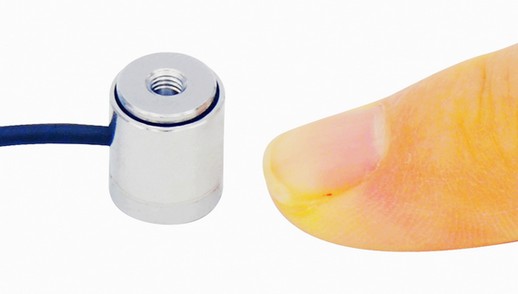

Mini load cell FLAD is made of stainless steel utilizing metal foil strain gauge technology intended for both tension and compression force measurement. Small size column type force sensor FLAD is available in 1kgf / 2kgf / 5kgf / 10kgf / 20kgf five rated capacities. very compact size with only 10mm diameter, M2/M3 threaded holes located at the top and bottom surface makes it easy to load and mount the transducer. Forsentek is also flexilble in terms of loadcell customization.

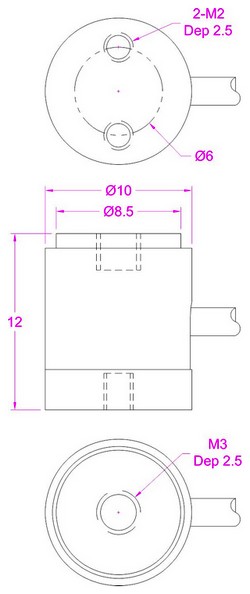

Dimensions:
