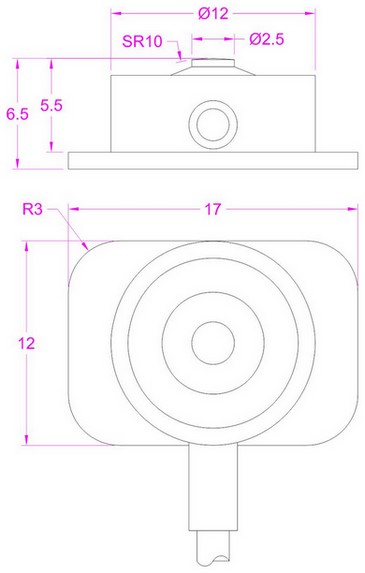

0-500N Mini button load cell with mounting base

Model:                        FCCF

Capacity:                    50/100/200/500N

Material:                     Stainless steel

Type:                          Load button

Rated output:              1.5mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~12V

Other:                        Compression sensor



Miniature button load cell FCCF is made of stainless steel based on strain gauge technology offering 50N / 100N / 200N / 500N four rated capacities intended for compression force measurement. Micro press load cell FCCF features a pedestal located at the bottom of the transducer which can be used to fix the sensor, the compact design makes load button FCCF an excellent option for applications with tight and limited spaces in automation field. Model FCCF can also be modified or customized if needed.
