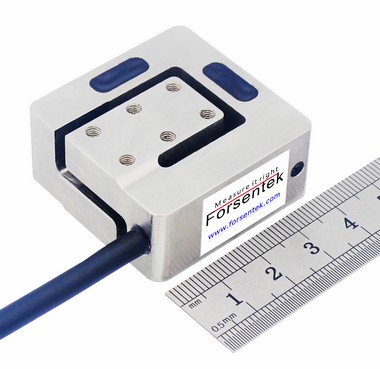

Miniature multi axis load cell 0-1kN 3-axis sensor

Model:                        F3N

Capacity:                    0~1kN

Type:                          Tri-axial force sensor

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Usage:                       3-axis force measurement



Features:

The F3N miniature multi-axis force sensor is engineered to measure bidirectional tension and compression forces across three orthogonal axes (Fx, Fy, Fz) with high precision. Utilizing three independent Wheatstone full-bridge circuits bonded to optimized strain beam structures, it generates millivolt-level outputs proportional to applied forces, which are converted via a multi-channel amplifier to standardized 0-5V, 0-10V, or 4-20mA signals for seamless system integration. Available in five rated capacities (50N, 100N, 200N, 500N, 1kN) across all axes, the compact stainless steel sensor combines durability with a space-saving design suited for confined installations. Its triaxial capability enables real-time 3D force monitoring in applications such as robotic end-effector force feedback, dental and surgical simulators, joystick force assessment, structural load analysis, medical rehabilitation robotics, and precision force control in automated handling systems.

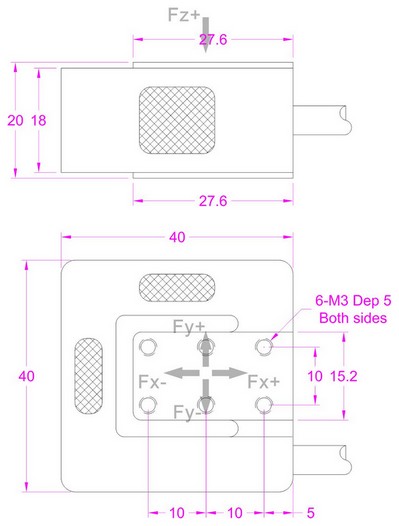

Dimensions:
