3kg 6kg 10kg 20kg 40kg High accuracy load cell

Model:                        FH03

Capacity:                    3/6/10/20/40kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

High accuracy load cell FH03 utilizes strain gauge technology.Load sensor FH03 offers 3kg / 6kg / 10kg / 20kg / 40kg five rated capacities with maximum 0.015% non-linearity of the full scale to choose from.To achieve stable measuring results,model FH03 is temperature compensated.Weight sensor FH03 is corner trimmed for platform sizes up to 250x350mm, which makes it suitable for weight measurement where load center is not constant.You may find transducer FH03 applicable for bench scales,electronic scales and other industrial weighing applications.

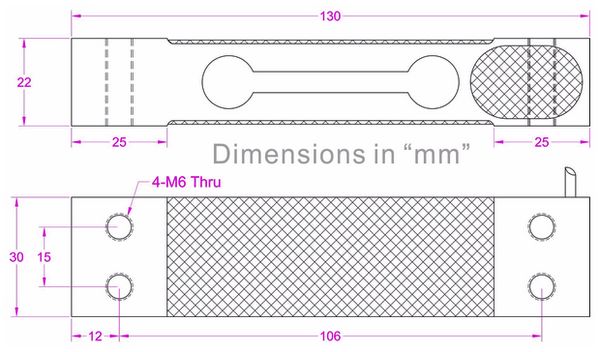

Dimensions:
Searching keywords:
Platform load cell 3kg,off center load cell 10kg,weight sensor 20kg
