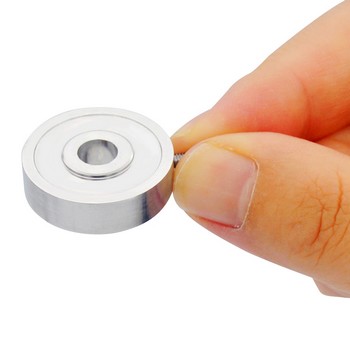

Miniature washer type through hole load cell

Model:                        FDBF

Capacity:                    5/10/20/50/100/200kg

Type:                          Load washer

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Structure:                    Thru-hole

Features:

Miniature low profile through hole load cell FDBF is made of stainless steel intended for press or inline compression force measurement. Donut loadcell FDBF offers 5kg / 10kg / 20kg / 50kg / 100kg / 200kg six rated capacities to choose from. You may find washer type load cell FDBF applicable for bolting/clamping force measurement, overload monitoring and other force measuring applications which requires the load structure to pass through the sensor. Donut/Thru hole load cell FDBF can also be modified or customized upon request.

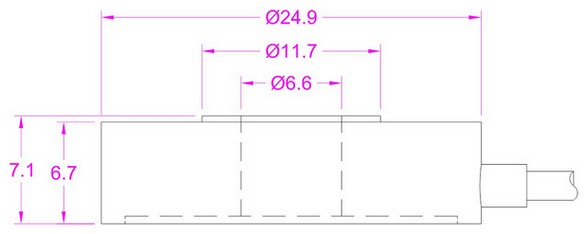

Dimensions:
