0.5kg 1kg 2kg 5kg 10kg 20kg Load cell sensor

Model:                        FH02

Capacity:                    0.5kg~20kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Small size load cell sensor FH02 is made of aluminum alloy based on strain gauge technology.Weight sensor FH02 offers 0.5kg / 1kg / 2kg / 3kg / 5kg / 6kg / 10kg / 15kg / 20kg nine rated capacities to choose from.Model FH02 is temperature compensated to deliver stable readout throughout the working temp. range.Single point load cell FH02 is corner trimmed for platform sizes up to 120x120mm,suitable for off-center load measurement.Beam loadcell FH02 is widely used for bench scales,counting scales and other weighing devices.Custom design service is available to meet requirements of different applications.

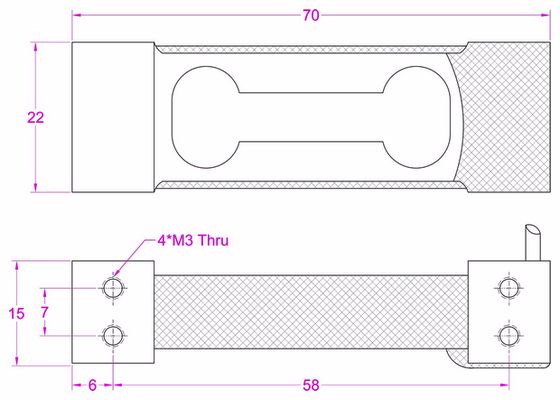

Dimensions:
