Product > Beam load cell

Stainless steel Single ended beam load cell 0-10t

Model:                        FHSE

Capacity:                    0~10 ton

Material:                     Stainless steel

Type:                         Shear beam load cell

Rated output:              2.0mV/V

Non-repeatability:      0.018% of R.O.

Excitation:                  3~15V

Usage:                        Vessel weighing

Features:

Stainless steel load cell FHSE is a beam type loadcell offering 500kg / 1t / 1.5t / 2t / 2.5t / 3t / 5t / 7.5t / 10ton rated capacities to choose from. IP68 hermetically sealed using laser welding technology, which assures long-term stability and durability in outdoor weighing applications and other harsh working conditions. Single ended shear beam load cell FHSE is temperature compensated to deliver C3 accuracy, easy to install, which makes transducer FHSE an excellent option for medium to high capacity weighing applications in industrial field such as tank scales, hopper weighing sytems, conveyor scales,etc.

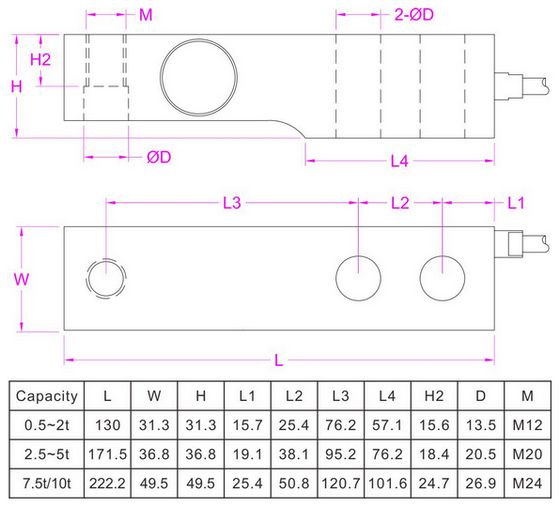

Dimensions:
Searching keywords:
Shear beam load cell,single ended loadcell
