Single point load cell 0-250kg Weight transducer

Model:                        FHPA

Capacity:                    50/100/150/200/250kg

Material:                     Aluminum alloy

Type :                        Platform loadcell

Rated output:              2.0 mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Off center load cell

Features:

Single point load cell FHPA is made of aluminum with 50kg / 100kg / 150kg / 200kg / 250kg five rated capacities. Anodized coating makes it resistant to environmental conditions and suitable for many industrial weighing applications. A special humidity-resistant protective coating provides IP65 protection and assures long-term stability over the entire compensated temperature range. Off center load cell FHPA is suitable for platform sizes up to 400x400mm and weighs within tolerance regardless of load point due to the off-center load compensation process. The FHPA weight transducer is ideally suited to be used in single-point applications such as bench scales, weighing control systems, filling and packing machines and so on.

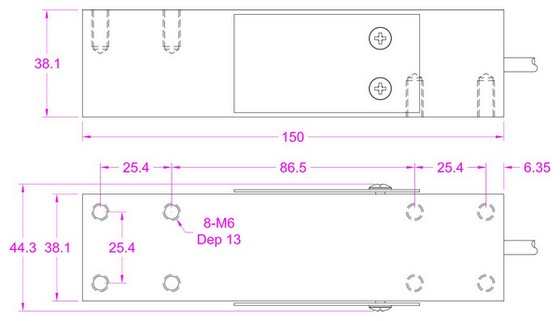

Dimensions:
Searching keywords:
Single point loadcell,off center weight sensor
