Product > Beam load cell

Stainless steel single point load cell 0-200kg

Model:                        FHSP

Capacity:                    0~200kg

Material:                     Stainless steel

Type:                          Single point loadcell

Rated output:              2.0 mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Usage:                        Off-center weighing

Features:

The FHSP Stainless Steel Single Point Load Cell is a rugged and reliable weighing solution specifically engineered for demanding environments, featuring a hermetically sealed design with IP67 protection that ensures dependable operation even in harsh industrial conditions. Built to deliver precision and durability, the FHSP is available in eleven rated capacities ranging from 5kg, 8kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, up to 200kg, providing exceptional flexibility to suit a wide variety of applications. With a C3 accuracy class, this load cell guarantees consistent and highly accurate weight measurements across its entire range. The FHSP is temperature compensated to maintain stable performance under fluctuating environmental conditions and is carefully corner trimmed to support platform sizes up to 400 x 400 mm, enabling precise off-center load measurement. Thanks to these advanced features, the FHSP weight measurement load cell is ideally suited for integration into platform scales, packaging machinery, and process weighing equipment, making it an excellent choice for industries that require reliable, high-accuracy weight sensing in both standard and challenging operating environments.

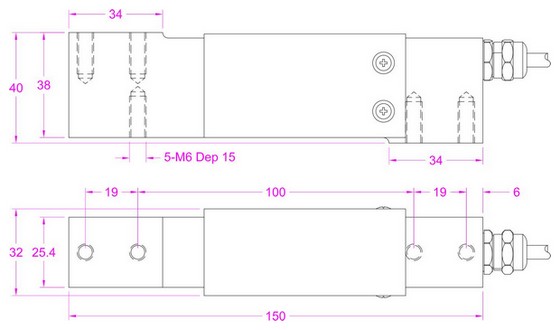

Dimensions:
