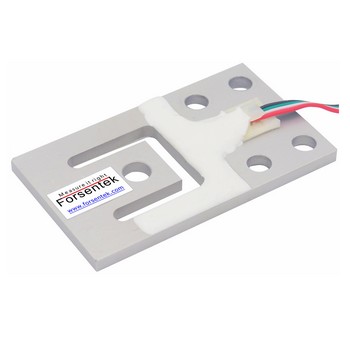

Planar beam load cell 0-375kg Thin weight sensor

Model:                        FHPB

Type:                          Planar load cell

Feature:                      Compact/high accuracy

Load direction:           Compression

Rated output:              1.0mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V DC

Capacity:                    0-375kg

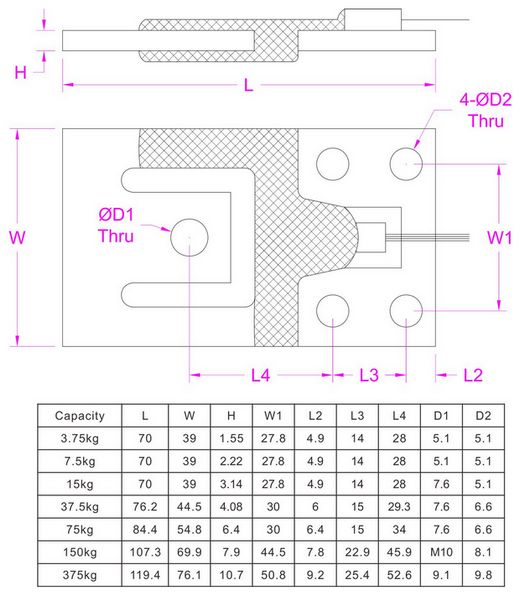

Planar beam load cell FHPB is designed for weighing applications where a low profile solution is needed.Planar load cell FHPB utilizes aluminum construction offering 0-3.75kg / 0-7.5kg / 0-15kg / 0-37.5kg / 0-75kg / 0-150kg / 0-375kg seven measuring ranges to choose from, 1.0mV/V unified rated output, 1000Ω strain gauge bridge makes it suitable for battery powered devices. High accuracy with 0.02% comprehensive error, very compact design. Typically, our planar beam load cells would be used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor.
