Single point load cell 0-1000kg weight sensor

Model:                        FH7A

Capacity:                    0-1000kg

Material:                     Aluminum alloy

Type:                          Single point load cell

Rated output:              2.0 mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  3~15V

Other:                         Off center loadcell

Features:

Single Point Load Cell FH7A is strain gauge based with 2.0mV/V rated output, high accuracy with 0.015% non-linearity error of the full scale. It is off-center load compensated for up to 800x800mm platform which makes weight sensor FH7A ideal for single-cell large-platform scales. Temperature compensation process guarantees stable performance over a wide of working temperature. Environmentally sealed with potting compound to ensure durability. Weighing transducer FH7A offers 1000kg / 800kg / 600kg / 500kg / 300kg / 200kg / 100kg / 60kg eight rated capacities to choose from, you may find load cell sensor FH7A interchangeable with Sentronik 7342, anyload 108CA, VPG Tedea-Huntleigh 1263, Coti Global CG-50-2, Transcell FAV, Zemic L6G, Optima OP-305, ptglobal PTASP6-G. Typical applications of weight sensor FH7A are for example platform scales, automated weighing stations, food packaging machines, intelligent warehouse weighing system and so on.

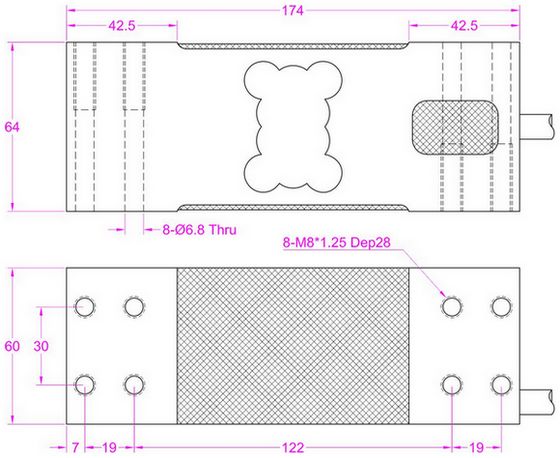

Dimensions:
