Tension compression load cell 0-20KN thrust sensor

Model:                        FL51

Capacity:                    0.5/1/2/3/5/10/20kN

Type:                         Inline force transducer

Load direction:           Tension/compression

Rated output:              1.5 mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Other:                        Rod end load cell

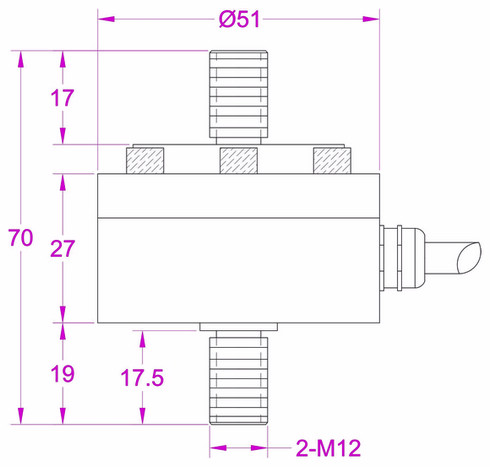

M12 threaded in line load cell FL51 is made of stainless steel utilizing strain gauge technology intended for both traction and compressive force measurement. Cylindrical force transducer FL51 offers 0-500N / 0-1kN / 0-2kN / 0-3kN / 0-5kN / 0-10kN / 0-20kN seven rated measuring ranges to choose from, M12 threaded rods located on both sides of the sensor can be used to mount attachments such as eye bolts, bolt adapters for different applications. You may find thrust sensor FL51 applicable for force measurement&Control in robot welding, connector insertion and extraction, cylinder/actuator thrust, force simulators, tooling pressing and so on. Rod end load cell FL51 can also be modified or customized as per request of our clients.
