Product > Tension compression load cell

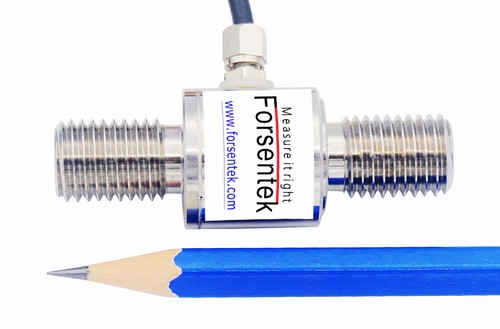

M12 Threaded force transducer tension compression

Model:                        FLH

Capacity:                    10kN/20kN

Type:                          In-line load cell

Load direction:           Tensile/compressive

Rated output:              1.5 mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Connection:                 M12 threaded rod

Features:

M12 threaded rod end tension and compression load cell FLH is made of stainless steel based on strain gauge technology delivering mV output from the bonded wheatstone full bridge. Inline type force sensor FLH offers 0-10kN / 0-20kN two rated measuring ranges to choose from intended for both tensile and compressive force measurement, M12 threaded rod located on both sides of the transducer can be used to mount attachments such as eye bolts, bolt adapters, pressure head for different applications. You may find in-line load cell FLH suitable for force measurement and control in robot welding, pneumatic actuator, servo press, tooling pressing, forming and riveting process, press-fitting sector, etc. Similar design with other measuring ranges can be customized as per request of our clients.

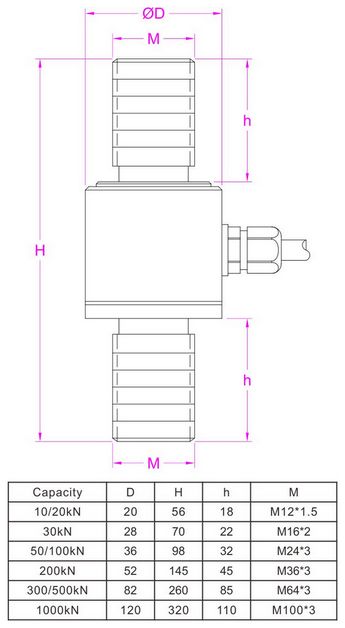

Dimensions:
Searching keywords:
Threaded inline load cell,rod end force transducer,tension and compression sensor
