Miniature force transducer with M6 mounting hole

Model:                        FSSH

Capacity:                    0~2kN

Type:                          Miniature force sensor

Load direction:           Traction/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Connection:                M6 threaded hole

Features:

The FSSH miniature tension compression load cell is a high-precision force cell designed for applications that demand reliable bidirectional force measurement in both push and pull directions. Built with a Wheatstone full-bridge circuit, it delivers a stable mV output directly proportional to the applied load, ensuring excellent sensitivity and repeatability across various force testing environments.

Compact in size yet robust in construction, the FSSH push pull force sensor is available in five rated capacities: 100N, 200N, 500N, 1kN, and 2kN (equivalent to 10kg, 20kg, 50kg, 100kg, and 200kg). With a maximum non-linearity of just 0.1% of full scale, this versatile load cell provides dependable accuracy suitable for a wide range of industrial and laboratory applications, including material testing, robotics, production line monitoring, and automated assembly equipment.

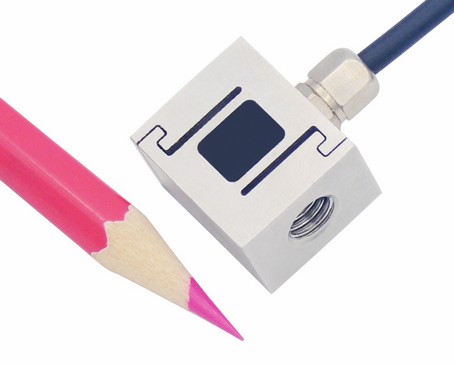

miniature force cell

The sensor is equipped with M6 threaded holes on both ends, allowing for straightforward installation and flexible adaptation to different setups. By attaching load buttons, eye bolts, or hooks, users can configure the sensor for tension tests, compression tests, or complex load monitoring scenarios.

Engineered for performance in compact spaces where larger transducers cannot fit, the FSSH miniature tension compression load cell offers the ideal balance of precision, size, and durability. Whether used as a standalone force cell or integrated into automated systems, it delivers consistent, accurate, and efficient bidirectional force measurement across demanding applications.

Dimensions:
