Flange load cell 0-1000kg Compression sensor

Model:                        FFR

Capacity:                    0-1000kg

Type:                         Flange load cell

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Mounting:                 Flange to flange

Features:

Flange mounted load cell FFR is strain gauge based with full wheatstone bridge configuration delivering mV/V output intended for compression force measurement, flange-to-flange load cell FFR offers the same mounting dimensions with 0-10kg / 0-20kg / 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1000kg seven measuring ranges to choose from. You may find flange type force transducer FFR applicable for fixture clamping force measurement, load distribution analysis, sliding thrust measurement, hand press force verification, and so on. Flanged load cell FFR can also be modified or customized as per client’s request.

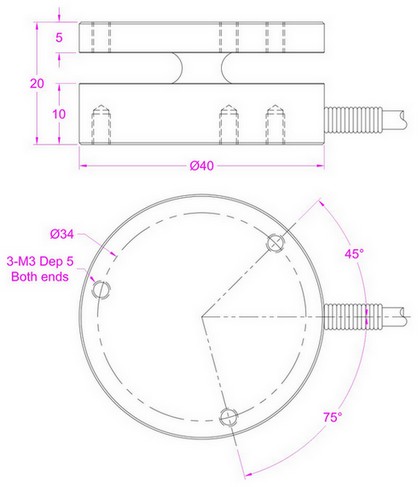

Dimensions:
