Miniature flange type force transducer 0-5kN

Model:                        FFU

Capacity:                    0-5kN

Type:                         Flange force sensor

Load direction:           Compression

Rated output:              1.0mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Mounting:                 Flange to flange

Features:

Miniature flange type force sensor FFU is made of stainless steel based on strain gauges intended for compression force measurement with 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN / 0-5kN six ranges to choose from. Flange to flange configuration, compact size, you may find flange mounted force transducer FFU suitable for applications such as automated control, fixture clamping force measurement, load distribution analysis, hand press force verification, and so on. Flange mounted load cell FFU can also be modified or customized as per client’s request.

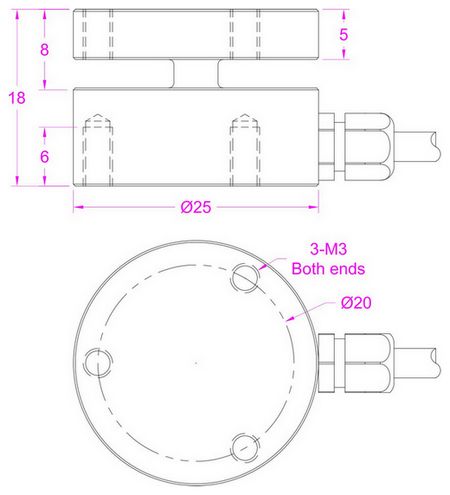

Dimensions:
Searching keywords:
Flanged load cell,flange type force transducer
