Product > Beam load cell

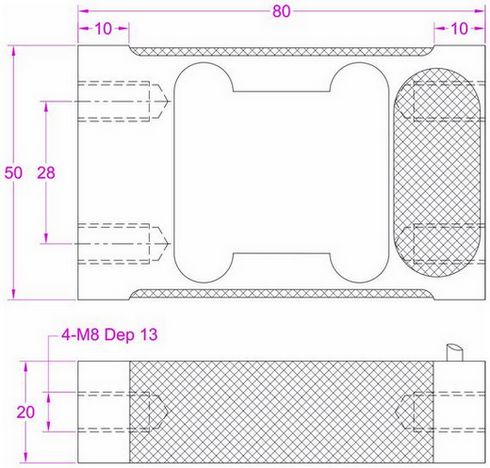

Side mounted load cell 4kg 10kg 15kg 20kg 30kg

Model:                        FHU

Capacity:                    0-30kg

Material:                     Aluminum alloy

Type:                         Side mount load cell

Rated output:              2.0±10%mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Usage:                        Auto filling machine


Side mounted load cell FHU is strain gauge based offering 4kg / 6kg / 10kg / 15kg / 20kg / 30kg six rated capacities to choose from, high accuracy with maximum 0.02% non-linearity of the full scale. Side mount load sensor FHU is temperature compensated to deliver stable measuring results in a wide temperature range, corner trimmed for platform sizes up to 200x200mm, which makes it suitable for off-center load measurement. You may find weight transducer FHU applicable for food packaging machines, electronic scales, auto filling machines and so on.
